MALLARD KIT

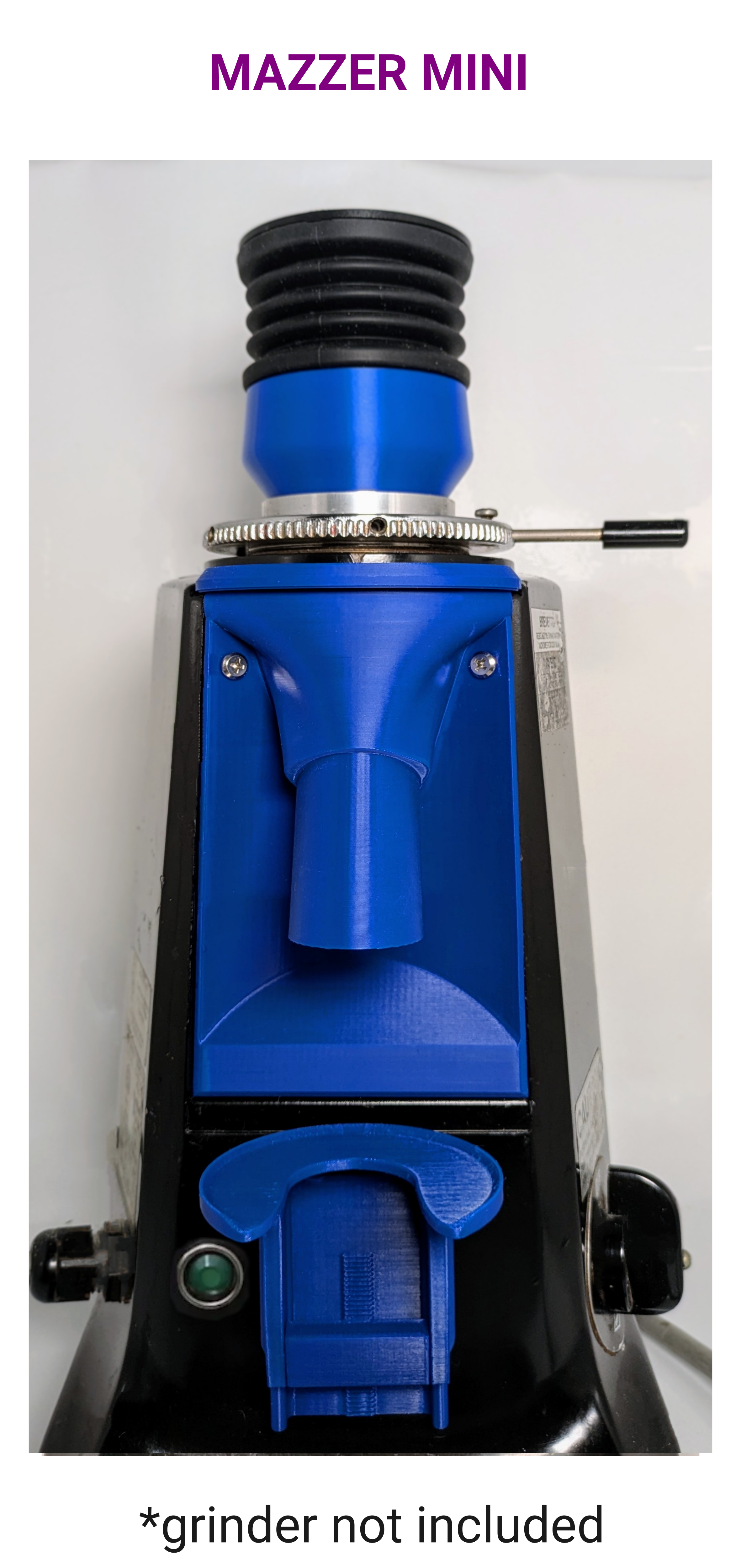

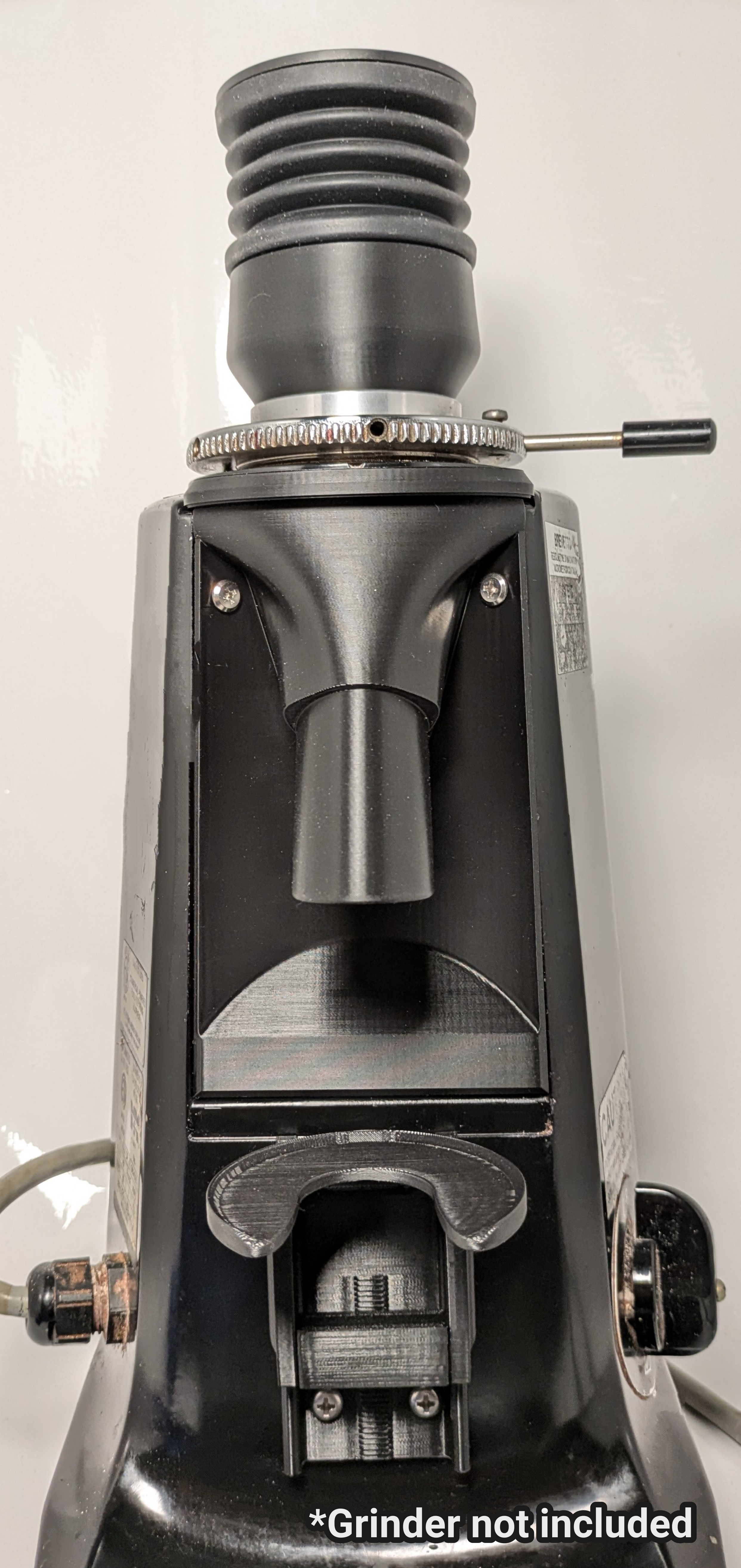

MALLARD Doserless Kit: Transform your Mazzer Grinder

Upgrade your Mazzer Mini or Super Jolly grinder with The MALLARD Doserless Kit and experience the convenience of "grind on demand" with minimal retention. As the trend in coffee shifts towards highlighting the delicate flavors of each origin, grinding fresh becomes crucial for achieving exceptional espresso.
Traditional dosers were designed for deliver from a supply of preground coffee, offering convenience at the cost of freshness. However, slapping the doser paddle a million times to achieve a "grind on demand" espresso is cumbersome and inefficient. Additionally, these dosers tend to leave a preload of ground coffee stuck in the exit passage, compromising the flavor.

The MALLARD Doserless Kit solves these problems by providing a modern solution. Here are the key features:
*Easy installation with just basic hand tools, no drilling required.
*Bellows System: Pushes air through the grinder for a low retention experience.
*Removable Chute Cap: Facilitates easy access cleaning to keep your grinder in top condition.
*Low Retention Design: Minimize stale coffee buildup and enjoy the true flavor of your beans.
*Precision Engineering: Designed and 3D printed in my maker space fab-lab, ensuring top quality and
accuracy.
*Food-Safe Materials: 3d printed with food-safe PLA plant-based bioplastic, ensuring safety.
*High-Quality Components: Includes a food-grade silicone bellows, an anodized aluminum lid, and
stainless steel screws for durability and longevity.
*Adjustable Platform Height: Fast and easy adjustments to suit your grinding needs. Grind in a cup or directly to a portafilter!

Upgrade your coffee experience with The MALLARD Doserless Kit and enjoy the convenience of fresh grinding with every shot. Perfect for coffee enthusiasts who demand the best from their equipment.

This kit is designed for Mazzer Super Jolly / Mini models, but compatibility depends on the version:
✅ Works with:
Manual version
Timer version
❌ Not compatible with:
3. "Automatic" fill stop version
4. "E" electronic version

⚠️ Does NOT work with "Automatic" and "E" versions unless wiring is modified. Wiring modifications are not recommended and are not illustrated in this listing. Modify at your own risk!

I N S T A L L A T I O N: (ALSO SEE FULL VIDEO HERE: https://tinyurl.com/5n6thfy5 )
Installation takes less than 30 minutes and you will only need screwdrivers and a pair of pliers.

REMOVING OLD DOSER
1. Unplug grinder remove hopper and lay on back.
2. Remove bottom plate. There is a chance of electric shock even when unplugged!
3. Remove screws of the portafilter support. Use pliers to grasp retaining nuts.
4. Remove the two screw/bolts located under the doser lid on either side of the coffee exit chute.
On some models they are screws and on other they may be 4.5mm bolts (needle nose plier work well)
5. Gently tilt the Doser and lift up to remove. The old gasket may tear that's okay because we
the MALLARD has a built in 0-ring.
6. Remove old gasket if desired.

MALLARD KIT INSTALL (see included reference diagram)
1. Attach the "Platform", use "nut bar" for easy install.
2. *Attach "Foot" if needed. This is provided as an extra incase the original is missing.
3. Reinstall bottom plate
4. Attach "Spout Plate" with included M4x8 screws (those fancy looking ones). Inspect the rubber ring that is seated.
5. Press "cap" on "Spout Plate" to snap in place.
6. Gently push "Adapter," "Bellows" and "Bellows Lid" to the hopper port.

That's it! Thanks for looking!
